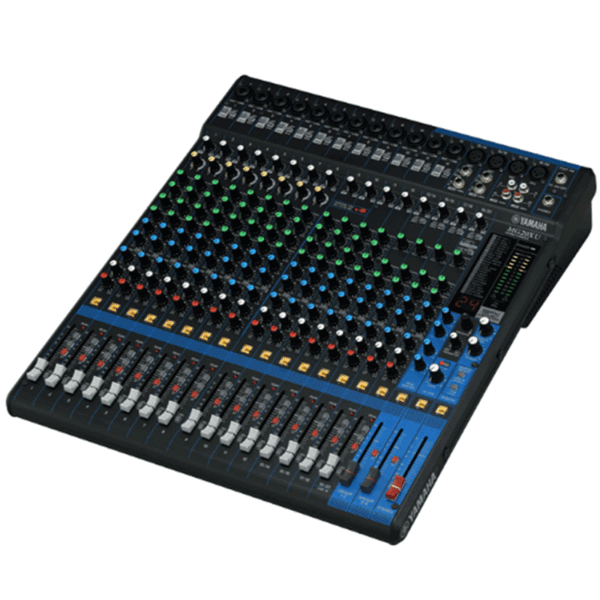

MIKSETA PASIVNA YAMAHA MG20XU

Opis

Karakteristike:
Outline

Mixing capability On-board processors SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)

I/O Phantom power +48 V

Digital I/O USB Audio Class 2.0 compliant Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit

Input Channels Mono[MIC/LINE] 12

Mono/Stereo[MIC/LINE] 4

Output Channels STEREO OUT 2

MONITOR OUT 1

PHONES 1

AUX SEND 4

GROUP OUT 4

Bus Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)

Input Channel Function PAD 26 dB (Mono)

HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)

COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec

EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving

EQ MID Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking

EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving

PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping

Level Meter 2×12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]

General specifications

Total harmonic distortion 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min

Frequency response +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min

Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)

Residual output noise -102 dBu (STEREO OUT, STEREO master fader: Min)

Crosstalk -78 dB

Power requirements AC 100 – 240 V, 50 / 60 Hz

Power consumption 36 W

Dimensions W 444 mm (17.5″)

H 130 mm (5.1″)

D 500mm (19.7″)

Net weight 7.1kg (15.7 lbs.)

Accessories Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5

Others Operating Temperature: 0 to +40˚C
