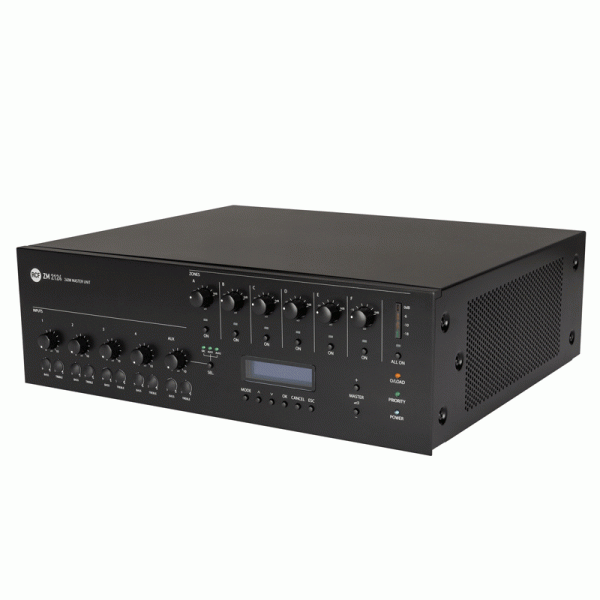

POJAČALO 100V, RCF ZM2124 6-ZONSKO 240W

Opis

SPECIFICATIONS
System specifications
NUMBER OF ZONES MANAGED:
54

BUILT-IN POWER AMPLIFIER:
Yes

MAX NUMBER OF CONSOLE:
6

NUMBER OF CONSOLE BUSES:
1

MAX NUMBER OF UNITS CONNECTABLE:
9

COMMUNICATION BUS:
Serial

CONNECTION CABLES:
FTP CAT 5
Amplifier specifications
NUMBER OF CHANNELS:
6

POWER OUTPUT (@ 100 V):
240 W RMS

FREQUENCY RESPONSE (-3DB):
50 Hz ÷ 20 kHz

SIGNAL/NOISE RATE (”A” WEIGHTED):
>75 dB dB

DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER:

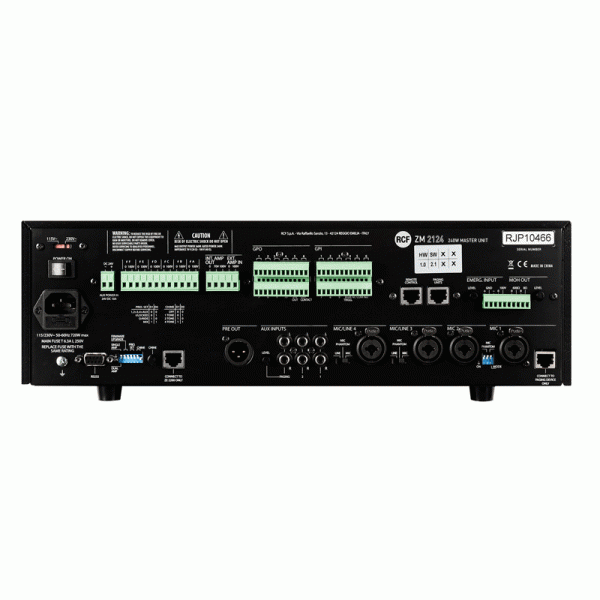

<1 %% Input section TOTAL NUMBER OF INPUTS: 9 BALANCED: 6 UNBALANCED: 3 MONO: 6 STEREO: 3 MIC INPUTS: 2 MIC CONNECTORS: XLR MIC PHANTOM: 17.5 V DC LINE INPUTS: 2 LINE CONNECTORS: RCA MIC+LINE INPUTS: 2 MIC+LINE CONNECTORS: XLR MIC+LINE PHANTOM: 17.5 V DC PAGING INPUTS: 3 PAGING CONNECTORS: RCA, RJ45 PAGING COMMAND: Contact GENERAL PURPOSE INPUTS (GPI): 10 PROGRAMMABLE GPI: Yes Output section SIGNAL OUTPUT NUMBER: 1 SIGNAL OUTPUT CONNECTORS: XLR POWER OUTPUT CONNECTORS: Euroblock GENERAL PURPOSE OUTPUTS (GPO): 10 Processing TONE CONTROLS: Yes Controls CONFIGURATION: Front panel PRIORITY: Yes MUSIC ON HOLD: Yes CHIME TONE: Yes Protections COOLING: Convection Power requirement OPERATING VOLTAGE: 220-240/115 V~ 50/60HzV ~ Hz VOLTAGE SELECTION: External DC POWER: Yes DC POWER VALUE: 24 V POWER CONSUMPTION: 720 W Standard compliance CE MARKING: Yes Physical specifications CABINET/CASE MATERIAL: Metal COLOR: Black RACK MOUNTING: 19", 3U Size DEPTH: 365 mm / 14.37 inches HEIGHT: 133 mm / 5.24 inches WEIGHT: 16.4 kg / 36.16 lbs WIDTH: 430 mm / 16.93 inches Shipping informations PACKAGE DEPTH: 490 mm / 19.29 inches PACKAGE HEIGHT: 296 mm / 11.65 inches PACKAGE WEIGHT: 18.8 kg / 41.45 lbs PACKAGE WIDTH: 490 mm / 19.29 inches Dual-bus system architecture System Paging consoles input for up to 6 selective devices daisychained, aux input and overall emergency input on precedence primary bus 4 inputs of which 2 microphone and 2 universal, 3 selectable aux inputs with individual volume and tone controls with configurable priority on secondary bus 240W constant voltage power amplifier with VU-meter for output signal level and overload indication. Auxiliary external amplifier input and output terminals to manage primary and secondary buses independently Volume attenuators and switches with indicators to send or not the secondary bus program (i.e. music) on each of the 6 speaker line outputs Link to connect up to eight ZE 2200 6six-zone expansion units so to built-up paging systems in excess of 50 zones. Dedicated wall mounting system remote control allows you to remote the main commands available on the master unit Priority indicator to show when any system priority circuit has been triggered Selectable chime generator is available on announcements ZM 2124 is the system main unit that includes a preamplifier with 6-zone selection and a built-in 240W amplifier. It is mostly indicated for small systems, where the required power per zone is limited. It has input connectors for sources and can manage priority and route the two buses to the system zones. It includes an output level control for each of the 6 zones powered by the internal 240W amplifier. An additional external amplifier is needed to keep the music programme in zones not involved by paging.

Brand

RCF

RCF je renomirani italijanski brend audio opreme, osnovan 1949. godine u Italiji. Lider je na tržištu live PA uređaja i zvučnika a pored njih, proizvode i pojačala, komercijalna i kućna audio rješenja, miksete, evakuacione sisteme, konferencijske sisteme... Amedex D.O.O. je ovlašteni distributer za RCF proizvode za Bosnu i Hercegovinu.
