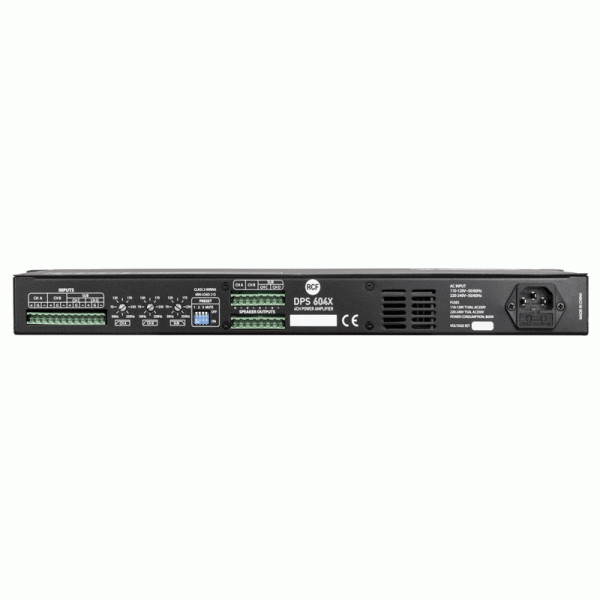

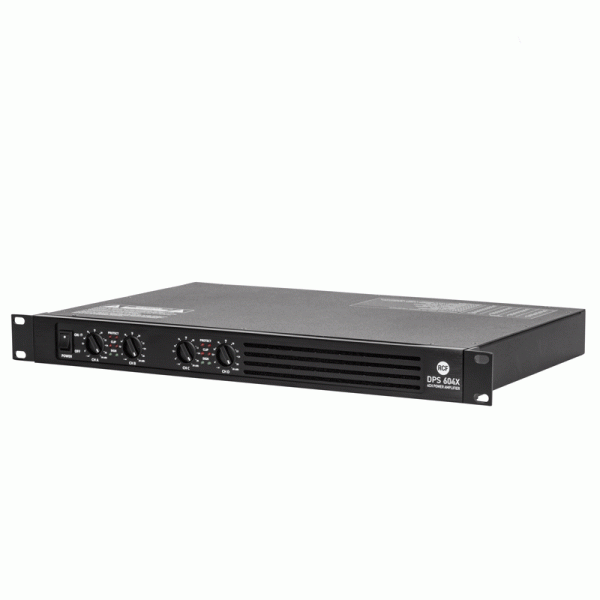

POJAČALO RCF DPS 604X

1.055,00 KM

Profesionalno 4-kanalno pojačalo RCF DPS604X D-klase.

Kategorija:
  • Opis
  • Brand

Opis

SPECIFICATIONS
Amplifier specifications
AMPLIFIER CLASS:
D

NUMBER OF CHANNELS:
4

POWER OUTPUT PER CHANNEL (@ 2 OHM):
230W RMS

POWER OUTPUT PER CHANNEL (@ 4 OHM):
150 W RMS

POWER OUTPUT PER CHANNEL (@ 8 OHM):
80 W RMS

POWER OUTPUT (BRIDGED @ 4 OHM):
400 W RMS

POWER OUTPUT (BRIDGED @ 8 OHM):
300 W RMS

FREQUENCY RESPONSE (-3DB):
20 Hz ÷ 24 kHz

SIGNAL/NOISE RATE (”A” WEIGHTED):
>95 dB

CROSSTALK (@ 1 KHZ):
<70 dB

DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER:
<0.1 %
Input section
BALANCED:
4

LINE CONNECTORS:
Euroblock

LINE INPUTS:
4

MONO:
4

TOTAL NUMBER OF INPUTS:
4
Output section
POWER OUTPUT CONNECTORS:
Euroblock
Processing
HIGH-PASS FILTER:
50 ÷ 250 Hz

CROSSOVER:
50 ÷ 250 Hz
Controls
CONFIGURATION:
DIP switch

NUMBER OF PROGRAMS/PRESETS:
9
Protections
COOLING:
Forced

SHORT CIRCUIT:
Yes

THERMAL:
Yes

DC DELAY:
Yes

FUSES:
Yes

VHF:
Yes
Power requirement
OPERATING VOLTAGE:
220-240/115 V~ 50/60Hz

POWER CONSUMPTION:
800 W
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal

COLOR:
Black

RACK MOUNTING:
19″, 1U
Size
DEPTH:
281 mm / 11.06 inches

HEIGHT:
44 mm / 1.73 inches

WEIGHT:
4.75 kg / 10.47 lbs

WIDTH:
483 mm / 19.02 inches
Shipping informations
PACKAGE DEPTH:
370 mm / 14.57 inches

PACKAGE HEIGHT:
100 mm / 3.94 inches

PACKAGE WEIGHT:
6 kg / 13.23 lbs

PACKAGE WIDTH:
560 mm / 22.05 inches

Brand

RCF

RCF je renomirani italijanski brend audio opreme, osnovan 1949. godine u Italiji. Lider je na tržištu live PA uređaja i zvučnika a pored njih, proizvode i pojačala, komercijalna i kućna audio rješenja, miksete, evakuacione sisteme, konferencijske sisteme... Amedex D.O.O. je ovlašteni distributer za RCF proizvode za Bosnu i Hercegovinu.
