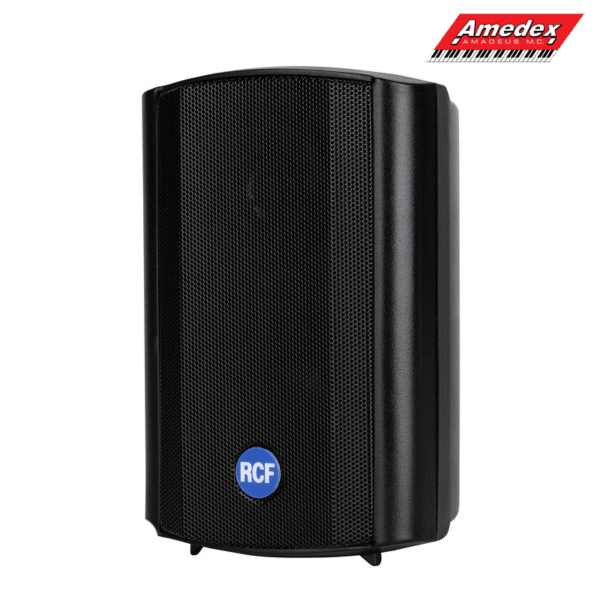

ZVUČNIK ZIDNI RCF DM41 CRNI

Opis

Acoustical specifications
FREQUENCY RESPONSE (-10DB):
100 Hz ÷ 20000 Hz

MAX SPL @ 1M:
102 dB

HORIZONTAL COVERAGE ANGLE:
180°

VERTICAL COVERAGE ANGLE:
170°

SYSTEM SENSITIVITY:
87 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
15 W RMS

PEAK POWER HANDLING:
60 W PEAK

RECOMMENDED AMPLIFIER:
30 W

CROSSOVER FREQUENCIES:
2.5 Hz
Transducers
DOME TWEETER:
1.0”

WOOFER:
3.5”
Input/Output section
INPUT CONNECTORS:
Cable

OUTPUT CONNECTORS:
Cable

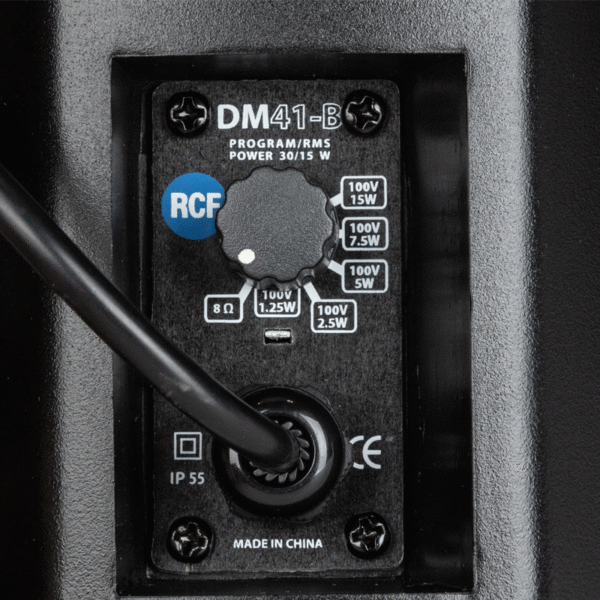

CONSTANT VOLTAGE TRANSFORMER:
70/100 V

POWER SELECTION 1 (100 V):
15 W – 667 ohm

POWER SELECTION 2 (100 V):
7.5 W – 1333 ohm

POWER SELECTION 3 (100 V):
5 W – 2000 ohm

POWER SELECTION 4 (100 V):
2.5 W – 4000 ohm

POWER SELECTION 5 (100 V):
1.25 W – 8000 ohm
Standard compliance
IP PROTECTION GRADE:
IP 55

CE MARKING:
Yes
Physical specifications
COLOR:
Black

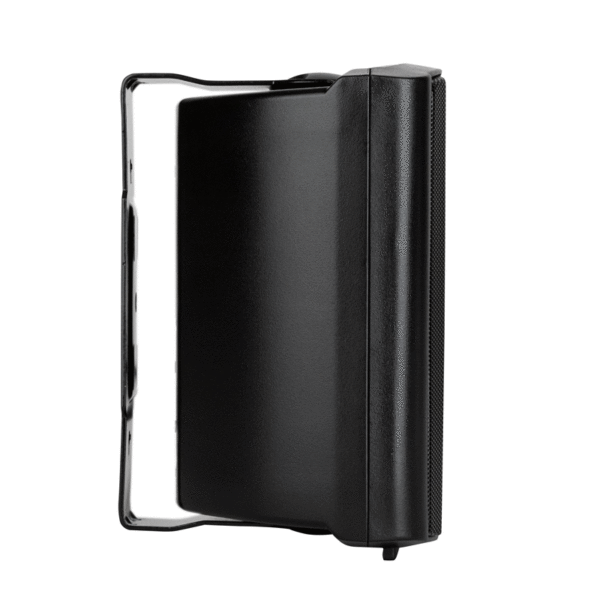

HARDWARE:
Aluminium U bracket

GRILLE:
Steel

CABINET/CASE MATERIAL:
Plastic
Size
WIDTH:
130 mm / 5.12 inches

DEPTH:
115 mm / 4.53 inches

HEIGHT:
197 mm / 7.76 inches

WEIGHT:
1.7 kg / 3.75 lbs
Shipping informations
PACKAGE WEIGHT:
1.96 kg / 4.32 lbs

PACKAGE DEPTH:
175 mm / 6.89 inches

PACKAGE WIDTH:
180 mm / 7.09 inches

PACKAGE HEIGHT:
260 mm / 10.24 inches

Brand

RCF

RCF je renomirani italijanski brend audio opreme, osnovan 1949. godine u Italiji. Lider je na tržištu live PA uređaja i zvučnika a pored njih, proizvode i pojačala, komercijalna i kućna audio rješenja, miksete, evakuacione sisteme, konferencijske sisteme... Amedex D.O.O. je ovlašteni distributer za RCF proizvode za Bosnu i Hercegovinu.
