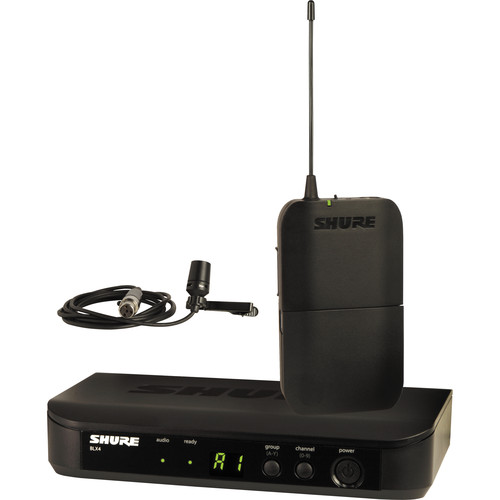

MIKROFON BEŽIČNI SHURE BLX14E/CVL Q25 bežični lavalier mikrofon

Opis

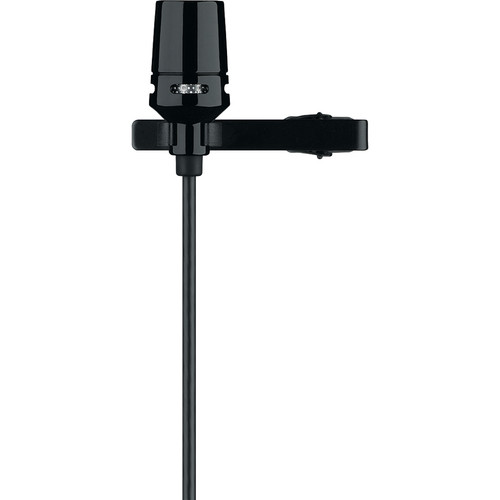

Diskretan, minijaturni clip-on lavalier mikrofon za govore i prezentacije
• Kondenzatorsdka kapsula sa kardioidnim polarnim šablonom.
• Radi sa Shure bežičnim bodypack sistemima sa TA4F (TQG) konektorima

Karakteristike CVL mikrofona

• Type Electret condenser
• Polar Pattern Cardioid
• Output Impedance 600 Ω @ 1 kHz, typical
• Audio Output Level -43.5 dBV/Pa
• Signal to Noise Ratio 72 dB @ 1 kHz
• Maximum SPL 139 dB, @ 1 kHz (1,000 Ω load)
• Dynamic Range 117 dB, @ 1 kHz (1,000 Ω load)
• Output Noise 22 dB, typical, A-weighted
• Power Requirements +5 V DC (nominal), 10 V maximum (DC bias)
• Polarity Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
• Cable 50″ (1.3 m)
• Connector TA4F
• Weight 0.88 oz (25 g)

Karakteristike BLX4 receivera

• Output 1x XLR Output
• 1x 1/4″ (6.35 mm) Output
• Izlazna impedansa XLR: 200 Ω
• 1/4″: 50 Ω
• Audio Output Level XLR Connector: -27 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone)
• 1/4″: -13 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone)
• RF Sensitivity -105 dBm for 12 dB SINAD, Typical
• Image Rejection >50 dB, Typical
• Housing Molded ABS
• Power Requirement 12 to 15 V DC @ 160 mA, Supplied by External Power Supply (Tip Positive)
• Dimensions (H x W x D) 1.5 x 7.4 x 4.1″ (40 x 188 x 103 mm)
• Weight 8.5 oz (241 g)

Karakteristike BLX1 bodypack transmitera

• Audio Input Gain: -16 dBV (Maximum), 10 dBV (Minimum
• Gain Adjustment Range 26 dB
• Ulazna impedansa 1 MΩ
• RF Output 10 mW, Typical
• Housing Molded ABS
• Power Requirement 2x LR6 AA Batteries, 1.5 V Alkaline
• Trajanje baterije Up to 14 Hours
• Dimenzije (H x W x D) 4.3 x 2.5 x 0.8″ (110 x 64 x 21 mm)
• Masa 2.6 oz (75 g)

Brand

SHURE

Shure je vodeći američki brend specijalizovan za proizvodnju profesionalnih audio uređaja i opreme, posebno poznat po visokokvalitetnim mikrofonima i slušalicama. Osnovan 1925. godine, Shure se ističe po dugoj tradiciji i predanosti pružanju vrhunskih audio rešenja za profesionalce u muzičkoj industriji, broadcast sektoru, kao i za entuzijaste visokokvalitetnog zvuka.
